Optical Plastic Lens SEMI-FINISHED LENS

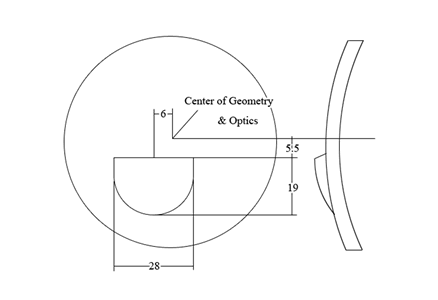

1.60 Flat Top Bifocal Lens
Material : 1.60 Index Resin (Ne=1.597, Abbe=40, Specific gravity=1.30)
Add Power : +1.00 to +3.00 in 0.25D steps.
Segment Size : 28mm

CONVEX SURFACE CONCAVE
SURFACE		 C.T
(mm)		 E.T
(mm)		 Dia
(mm)
Nominal
Curve		 True
Curve		 Sag
(sagitta:40mm) 		Sag
(sagitta:50mm) 		Radius Radius
1.597 1.530
2.25 2.13 1.89 0.71 1.11 280.00 111.70 8.5 12.2 75
4.25 4.59 4.08 1.53 2.40 130.00 88.80 6.4 9.1
6.25 5.97 5.30 1.99 3.13 100.00 132.50 8.4 6.4
8.25 8.90 7.90 2.98 4.72 67.09 111.70 10.8 6.4 70
Center Thickness:0.5mm Edge Thickness:0.5mm Diameter Ranges:0.5mm
